ALERTIFY
S7-6DI (3DIN)
Technical Datasheet
v2.1 Revision 2024
Designed & Made in Poland🇵🇱
Product Overview
Professional industrial node combining native Siemens S7-1200/1500 monitoring with 6x galvanically isolated 9-36VDC digital inputs.
Technical Specifications
Mounting90 x 18 x 58 mm (1U / 3DIN)
Protection ClassIP21
Digital Inputs6x (9-36VDC), Galvanic Isolated
Electrical ConnectorsKF2EDG 1.5mm² (Screw-less)
Operating Temperature-10°C to +40°C
Status IndicatorsCloud, PLC, System Health

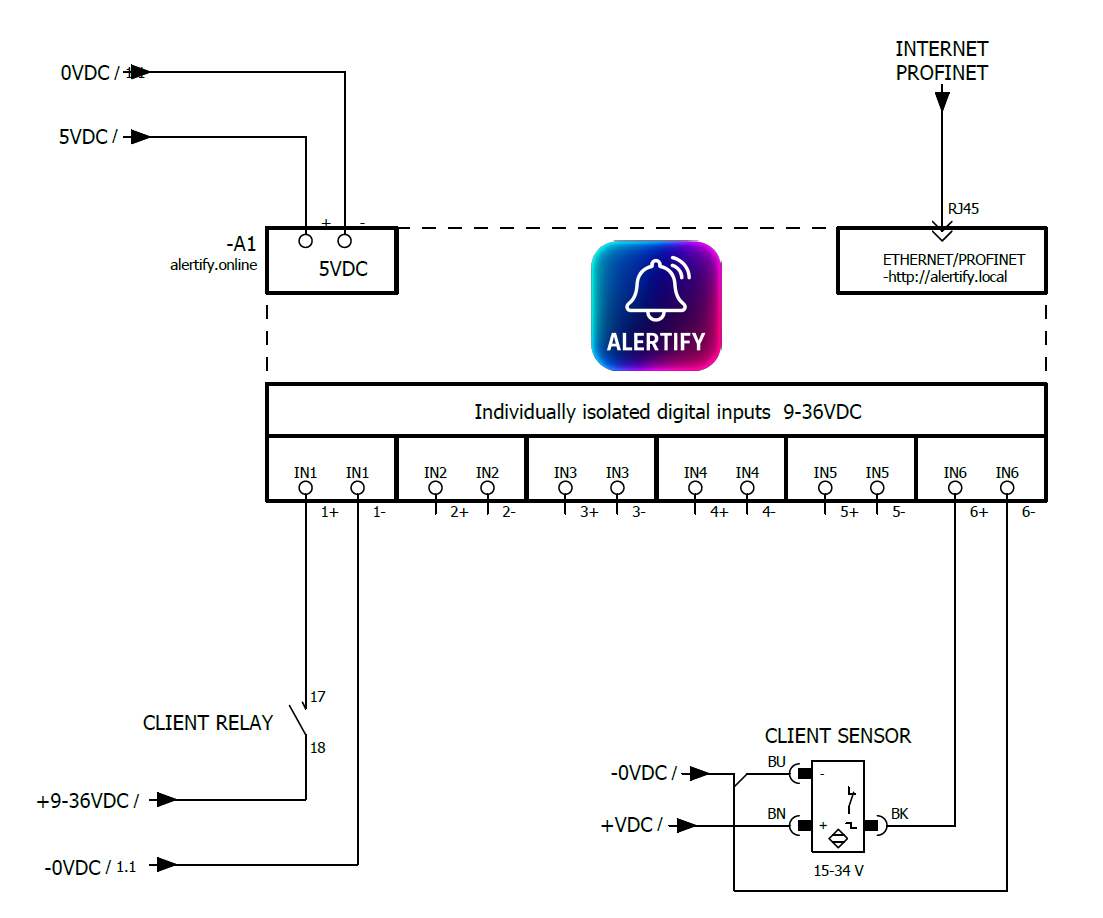

Wiring Schematic
Precise Dimensions
All models represent exact physical dimensions for collision testing.
3DIN Standard
Compliant with standard 35mm DIN rail mounting systems (1 module width).
EPLAN Ready
Macros include connection point logic and 2D layouts for rapid engineering.
Cloud Connectivity
Integrated ISO-on-TCP stack for Siemens S7 and secure TLS 1.3 Firebase Cloud communication.
